24V 205Ah Smart LiFePO4 Battery with LCD & Bluetooth
Samples in 15 days · Mass production 35–45 days
Download Product Catalog (PDF)
Source this iForway smart LiFePO4 battery for RV, marine and off-grid battery brands and distributors. Send your destination market, required configuration and estimated order quantity so our B2B team can prepare a model-specific quotation.
Confirm installation space, continuous load, charging profile, series/parallel limits and any monitoring or communication requirements before approving a battery. Published values are a reference; request the approved datasheet for the exact supplied version.
25.6V 205Ah smart LiFePO4 battery for lead-acid replacement, RV, marine, solar, backup and off-grid energy storage systems — delivering 5.248kWh of energy in a native 24V platform with a built-in LCD display, Bluetooth app monitoring, intelligent BMS and IP65-protected enclosure.
- Nominal voltage: 25.6 V · Capacity: 205 Ah · Stored energy: 5.248 kWh
- Cycle life: > 4,000 cycles @ 80% DoD · ≥80% remaining capacity · No memory effect
- Max. 100 A charging · Max. 200 A discharge for high-capacity 24V energy storage systems
- Charge 0–45°C · Discharge -20–60°C · IP65 enclosure · 35 kg
- Built-in LCD displays SOC, voltage, charge/discharge current, temperature and operating status
- Bluetooth app monitoring with smart BMS, cell balancing, overcharge, over-discharge, over-current, short-circuit and temperature protection
- 525 × 245 × 220 mm enclosure delivers 5.248kWh of energy in a single battery
- Native 25.6V architecture reduces the need to build a 24V system from multiple 12V batteries
- Supports up to 2 batteries in series for expandable systems up to 51.2 V nominal
| Nominal Voltage | 25.6 V |
|---|---|
| Capacity | 205 Ah |
| Stored Energy | 5.248 kWh |
| Cycle Life | > 4,000 cycles @ 80% DoD |
| Max. Charging Current | 100 A |
| Max. Discharge Current | 200 A |
| Charge Temperature | 0–45°C |
| Discharge Temperature | -20–60°C |
| Ingress Protection | IP65 enclosure |
| Weight | 35 kg |

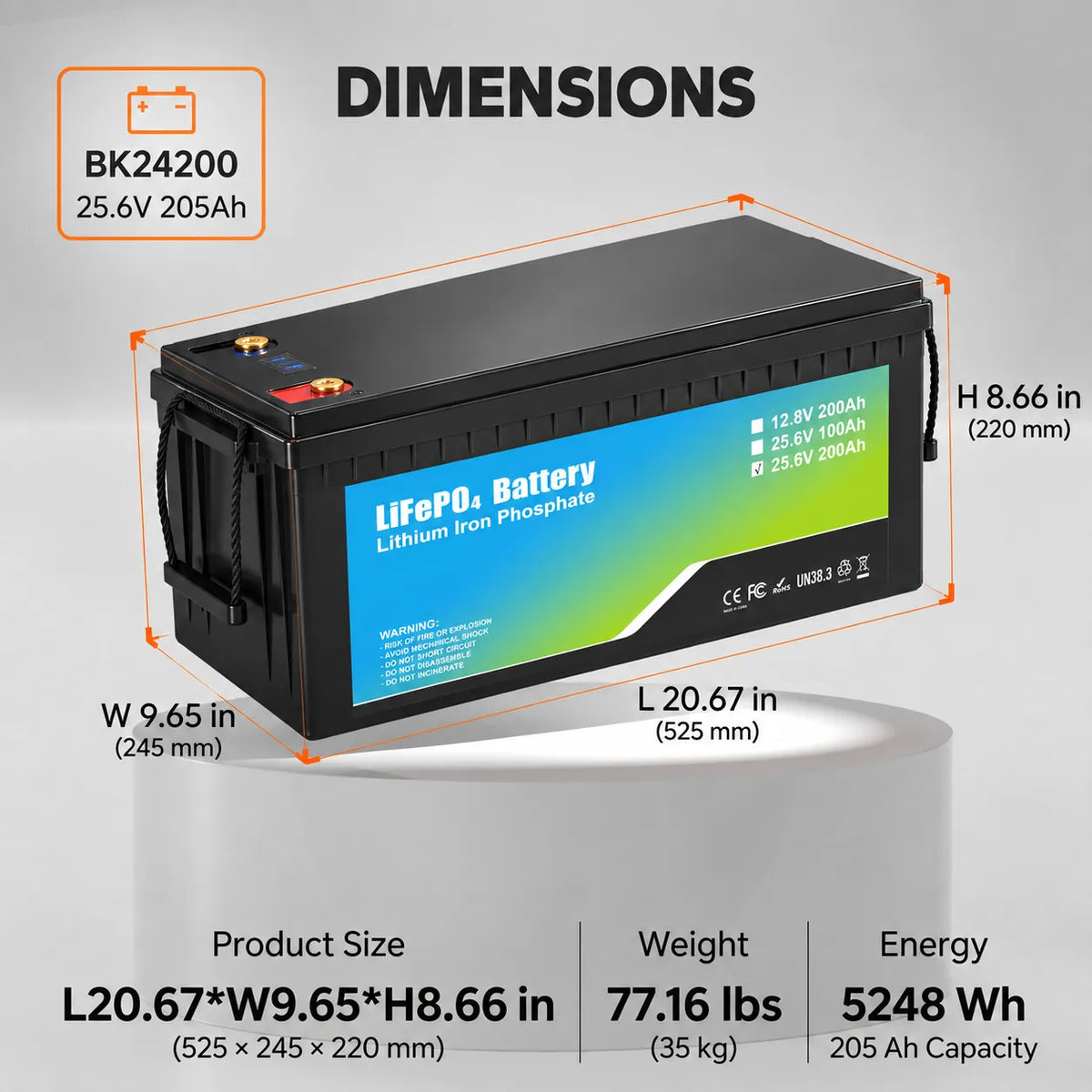

| Dimensions | 525 × 245 × 220 mm |
| Display | Built-in LCD displays SOC, voltage, charge/discharge current, temperature and operating status |
| Monitoring | Bluetooth app with smart BMS |
| Series Connection | Up to 2 batteries in series (up to 51.2 V nominal) |
| Ordering route | OEM/ODM, private label and wholesale enquiry |
| Final specification | Approved model/variant datasheet and written quotation apply |
Product & OEM/ODM FAQ
What is the MOQ for the 24V 205Ah LiFePO4 battery?
Standard OEM MOQ starts at 100 units; flexible trial orders may be available for qualified new brand partners.
Why choose a native 24V battery platform?
The 25.6V native 24V design stores 5.248kWh and supports 100A charge / 200A discharge. A true 24V platform reduces cable size and conversion losses compared to series-connected 12V units, simplifying 24V off-grid and backup installations.
What applications is this battery suited for?
It is designed for lead-acid replacement in RV, marine, solar, backup and off-grid energy storage systems, delivering reliable power for inverters, appliances and communication equipment.
Can I customize capacity, enclosure and branding?
Yes. We offer OEM/ODM services covering custom capacity, enclosure, BMS firmware, LCD/Bluetooth configuration and private labeling. Send your requirements and get a quotation within 24 hours.
What certifications does this battery hold?
The battery complies with ISO 9001, BSCI, CE, FCC, UL, KC, RoHS, UN38.3, MSDS, and PSE and is shipped with UN38.3 and MSDS documentation from our ISO 9001 and BSCI certified factory.
What should I confirm before sampling?
Confirm installation space, continuous load, charging profile, series/parallel limits and any monitoring or communication requirements before approving a battery. Share branding, packaging and any engineering changes in your RFQ.
How long do samples and production take?
For standard-platform projects, allow approximately 15 days for samples and approximately 45 days for mass production after specifications and commercial terms are approved. New tooling, engineering changes, testing, certification work and material availability can change the schedule; the confirmed quotation and production plan control.
Need a model-specific quotation? Request a Quote.
