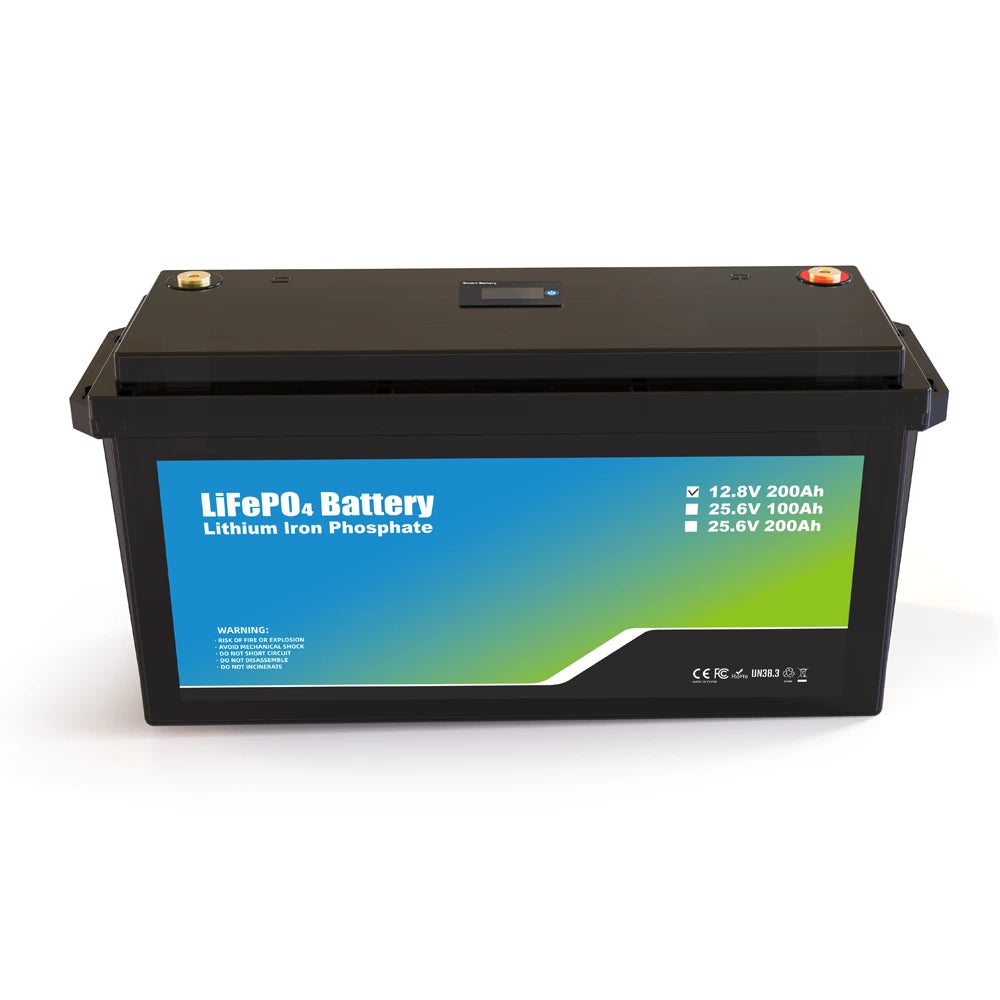

12V 196Ah Smart LiFePO4 Battery with LCD & Bluetooth
Samples in 15 days · Mass production 35–45 days
Download Product Catalog (PDF)
Source this iForway smart LiFePO4 battery for RV, marine and off-grid battery brands and distributors. Send your destination market, required configuration and estimated order quantity so our B2B team can prepare a model-specific quotation.
Confirm installation space, continuous load, charging profile, series/parallel limits and any monitoring or communication requirements before approving a battery. Published values are a reference; request the approved datasheet for the exact supplied version.
12.8V 196Ah smart LiFePO4 battery for lead-acid replacement, RV, marine, solar and energy storage applications — delivering 2.5kWh-class energy with a built-in LCD display, Bluetooth app monitoring, intelligent BMS and IP65-protected enclosure.
- Nominal voltage: 12.8 V · Capacity: 196 Ah · Stored energy: 2.5088 kWh
- Cycle life: > 4,000 cycles @ 80% DoD · ≥80% remaining capacity · No memory effect
- Max. 100 A charging · Max. 200 A discharge for higher-power battery systems
- Charge 0–45°C · Discharge -20–60°C · IP65 enclosure · 16.9 kg
- Built-in LCD displays SOC, voltage, charge/discharge current, temperature and operating status
- Bluetooth app monitoring with smart BMS, cell balancing, overcharge, over-discharge, over-current, short-circuit and temperature protection

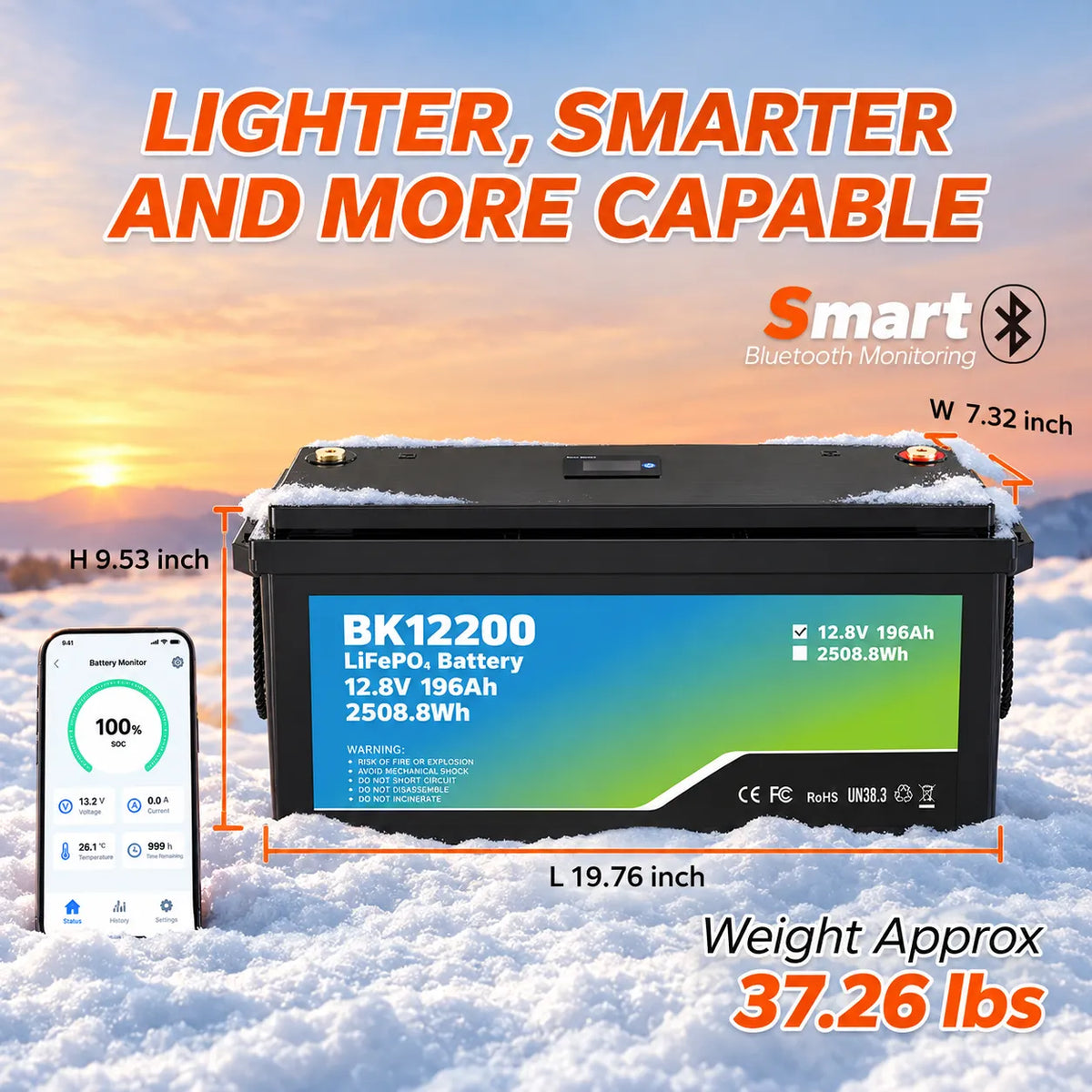

- 502 × 186 × 242 mm enclosure provides 2.5kWh-class energy in a single battery
- Supports up to 4 batteries in series for expandable systems up to 51.2 V nominal
| Nominal Voltage | 12.8 V |
|---|---|
| Capacity | 196 Ah |
| Stored Energy | 2.5088 kWh |
| Cycle Life | > 4,000 cycles @ 80% DoD |
| Max. Charging Current | 100 A |
| Max. Discharge Current | 200 A |
| Charge Temperature | 0–45°C |
| Discharge Temperature | -20–60°C |
| Ingress Protection | IP65 enclosure |
| Weight | 16.9 kg |
| Dimensions | 502 × 186 × 242 mm |
| Display | Built-in LCD displays SOC, voltage, charge/discharge current, temperature and operating status |
| Monitoring | Bluetooth app with smart BMS |
| Series Connection | Up to 4 batteries in series (up to 51.2 V nominal) |
| Ordering route | OEM/ODM, private label and wholesale enquiry |
| Final specification | Approved model/variant datasheet and written quotation apply |
Product & OEM/ODM FAQ
What is the MOQ for the 12V 196Ah smart LiFePO4 battery?
Standard OEM MOQ starts at 100 units; flexible trial orders may be available for qualified new brand partners.
What is the maximum discharge current of this battery?
This 196Ah battery supports up to 200A continuous discharge (2.5kWh stored energy), making it suitable for high-power systems such as large inverters, winches and heavy-duty appliances in RV and off-grid setups.
How long does this battery last compared to lead-acid?
The LiFePO4 chemistry delivers over 4,000 cycles at 80% DoD with no memory effect — roughly 8-10x the cycle life of a lead-acid battery. It also retains 80%+ capacity at end of life and weighs just 16.9kg.
Do you offer custom voltage, capacity and private label?
Yes. We provide full OEM/ODM services including custom capacity, enclosure design, LCD/Bluetooth BMS firmware and private label packaging. Share your spec via the OEM/ODM page and we will respond within 24 hours.
What export certifications are included?
The battery complies with ISO 9001, BSCI, CE, FCC, UL, KC, RoHS, UN38.3, MSDS, and PSE and is shipped with UN38.3 and MSDS documentation from our ISO 9001 and BSCI certified factory.
What should I confirm before sampling?
Confirm installation space, continuous load, charging profile, series/parallel limits and any monitoring or communication requirements before approving a battery. Share branding, packaging and any engineering changes in your RFQ.
How long do samples and production take?
For standard-platform projects, allow approximately 15 days for samples and approximately 45 days for mass production after specifications and commercial terms are approved. New tooling, engineering changes, testing, certification work and material availability can change the schedule; the confirmed quotation and production plan control.
Need a model-specific quotation? Request a Quote.
